英语The Automatic 4-6 Corner Folder Gluer (Servo System) is a precision-engineered machine designed for the efficient production of various box types, including Straight Line Boxes, Bottom-lock Boxes, and 4 & 6 Corner Boxes. This machine is equipped with a servo system that ensures stable performance, strong controllability, and ease of operation. It is particularly adept at handling the folding and gluing of four and six-cornered packaging boxes, making it an ideal solution for the automated packaging industry. The inclusion of a fold-back function further enhances its versatility, allowing it to meet the diverse needs of modern packaging operations.
Automatic 4-6 Corner Folder Gluer (Servo System)

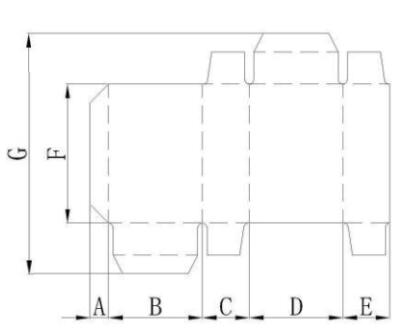

Straight Line Box
 |
Model | 1250 | 1450 | 1650 |
| A+B+C+D+E | 290-1250 | 290-1450 | 290-1650 | |
| E | 20-600 | 20-400 | 20-400 | |
| F | 75-1200 | 75-1200 | 75-1200 | |
| G | 75-1200 | 75-1200 | 75-1200 | |
| D+E | 70-600 | 70-400 | 70-400 | |
| A(MIN) | 15 | 10 | 10 |

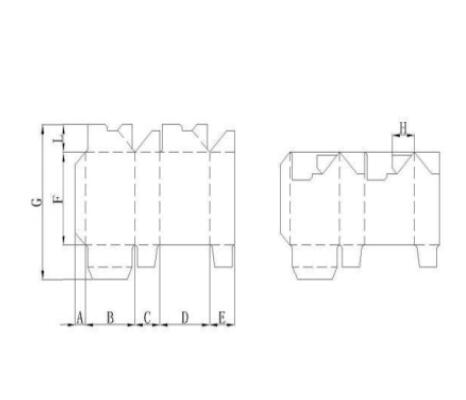

Bottom-lock Box
 |
Model | 1250 | 1450 | 1650 |
| A+B+C+D+E | 290-1250 | 290-1450 | 290-1650 | |
| E | 20-400 | 20-400 | 20-400 | |
| F | 75-1200 | 75-1200 | 75-1200 | |
| G(Max) | 75-1200 | 75-1200 | 75-1200 | |
| H(Min) | 25 | 25 | 25 | |
| D+E | 70-600 | 70-400 | 70-400 | |
| L | 30-100 | 30-100 | 30-100 |

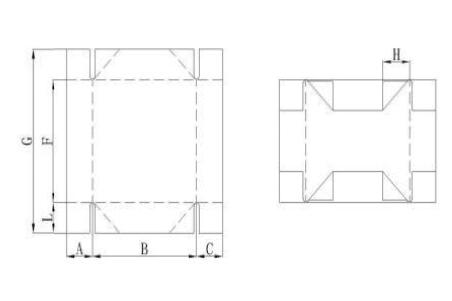

4 Corner Box
 |
Model | 1250 | 1450 | 1650 |
| A+B+C | 360-1250 | 360-1450 | 360-1650 | |
| B | 140-1000 | 140-1200 | 140-1400 | |
| G | 75-1200 | 75-1200 | 75-1200 | |
| H(MIN) | 25 | 25 | 25 | |
| L | 25-120 | 25-120 | 25-150 |

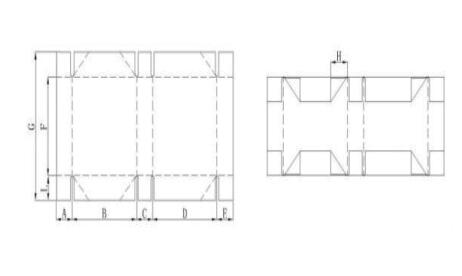

6 Corner Box
 |
Model | 1250 | 1450 | 1650 |
| A+B+C+D+E | 470-1250 | 470-1450 | 470-1650 | |
| B | 140-700 | 140-900 | 140-1100 | |
| G | 75-1200 | 75-1200 | 75-1200 | |
| H(MIN) | 25 | 25 | 25 | |
| L | 25-120 | 25-120 | 25-150 |
